Wire EDM

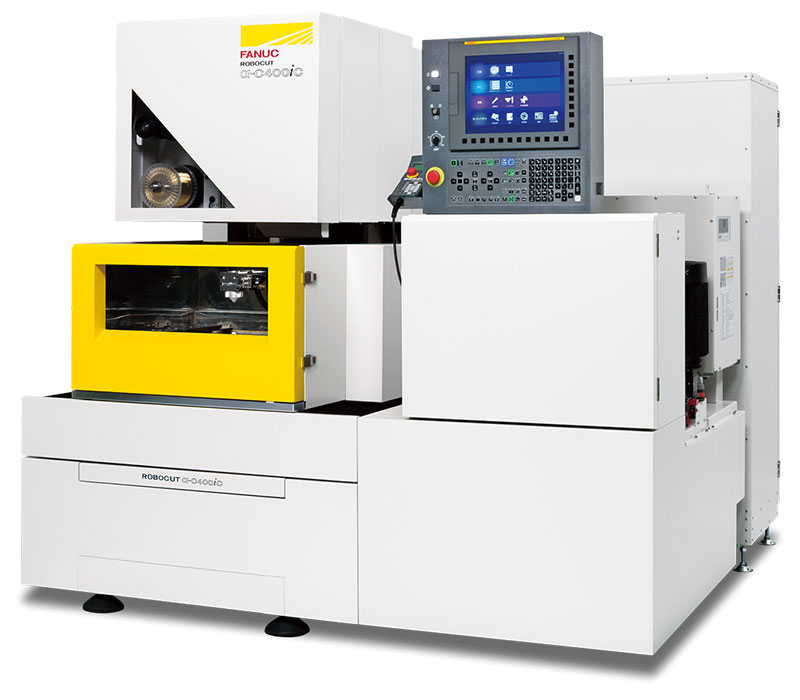

FANUC ROBOCUT ALPHA-C400iC
- X / Y / Z travel
- 400 / 300 / 255 mm
- U / V travel
- ±60 / ±60 mm
- Maximum workpiece mass
- 500 kg
MACHINES & PROCESSES
Capabilities you can
plan around.
Explore our machining equipment and working dimensions. Share your drawing so we can confirm process suitability, tolerances and delivery requirements.
MANUFACTURING CAPABILITIES
Wire EDM, die-sinking & drilling
Wire EDM

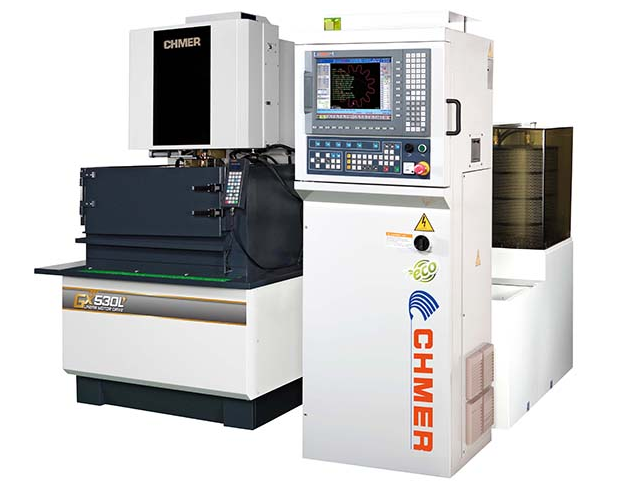

CHMER GX530L+
- X / Y / Z travel
- 500 / 300 / 220 mm
- U / V travel
- ±60 / ±60 mm
- Maximum workpiece mass
- 500 kg
EDM drilling

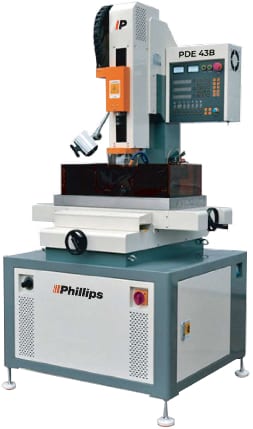

PHILLIPS PDE 43 B
- Electrode diameter
- 0.3–3.0 mm
- Control axis
- Z
- Table size
- 440 × 320 mm
- Table travel
- 400 × 300 mm
- Table load
- 300 kg
Die-sinking EDM
AGIE CHARMILLES ROBOFORM 40
- Origin
- Switzerland
- Quantity
- 1
- X / Y / Z travel
- 500 / 400 / 450 mm
- Maximum workpiece mass
- 1000 kg
MANUFACTURING CAPABILITIES
Milling
CNC milling

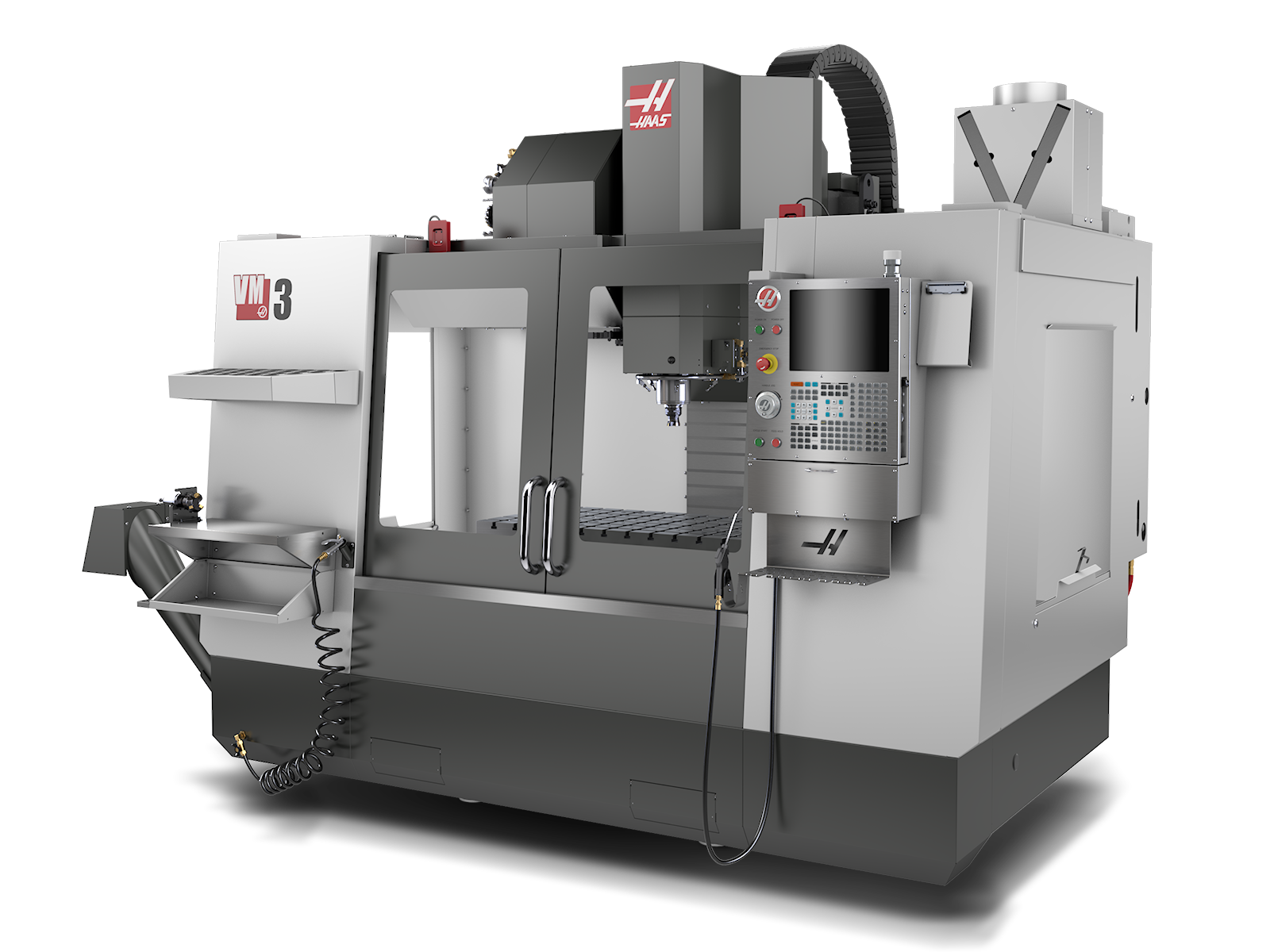

HAAS VM 3
- X / Y / Z travel
- 1016 / 660 / 635 mm
- Maximum spindle speed
- 12,000 rpm
- Maximum workpiece mass
- 1800 kg
Conventional milling

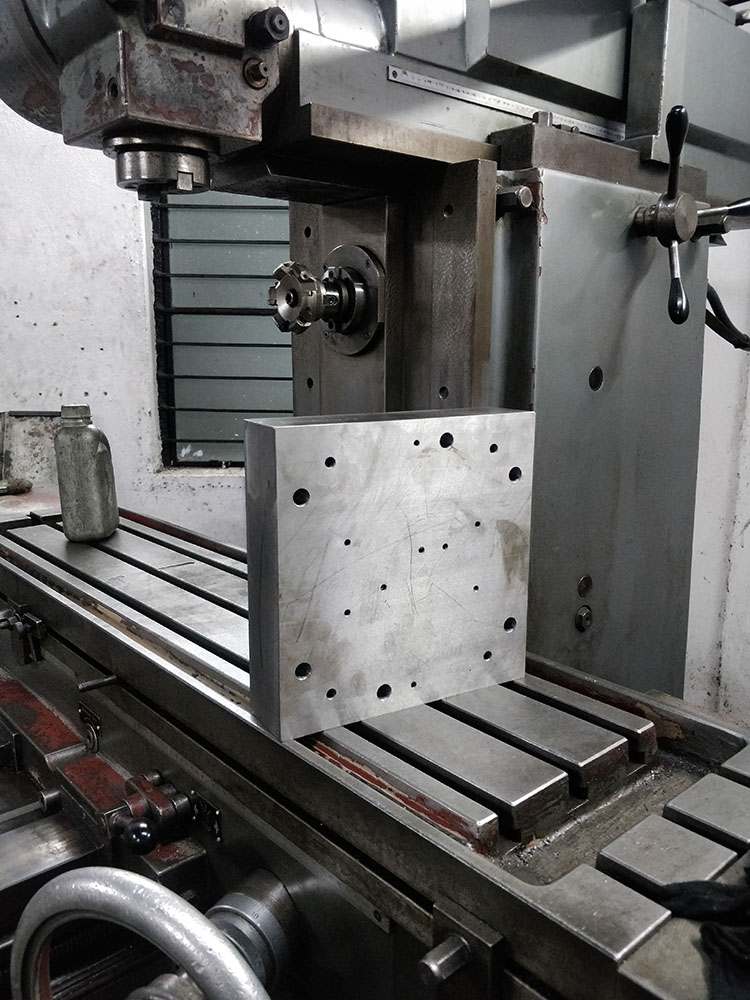

RIGIVA universal milling machine
- X / Y / Z travel
- 730 / 250 / 450 mm
- Maximum spindle speed
- 1200 rpm
- Maximum workpiece mass
- 800 kg
CNC vertical milling
HAAS VF-2YT
- Origin
- USA
- Quantity
- 1
- X / Y / Z travel
- 762 / 508 / 508 mm
- Spindle taper
- BT40
- Spindle speed
- 10,000 rpm
MANUFACTURING CAPABILITIES
Grinding
Surface grinding

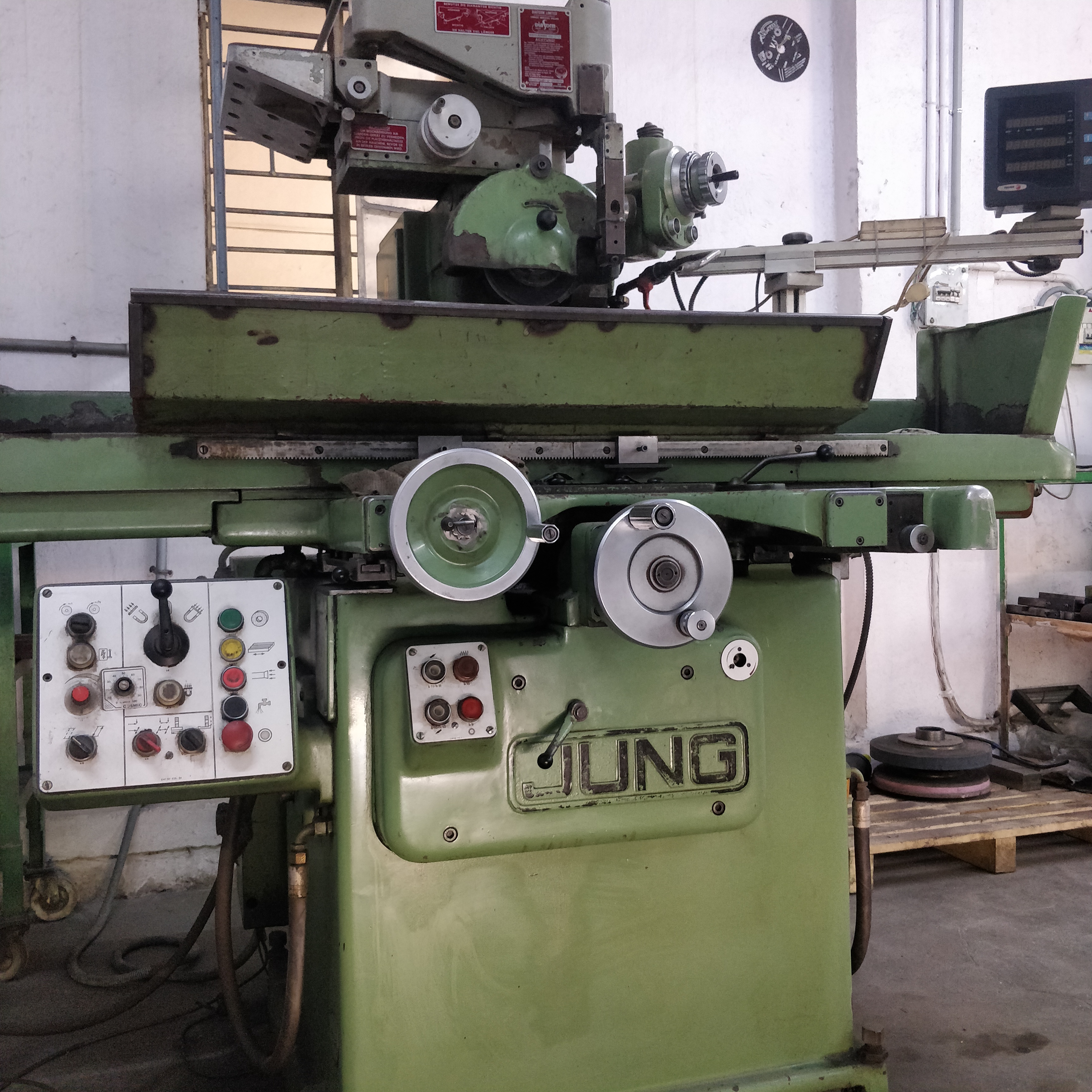

JUNG surface grinder
- X / Y / Z travel
- 500 / 200 / 400 mm
Cylindrical grinding

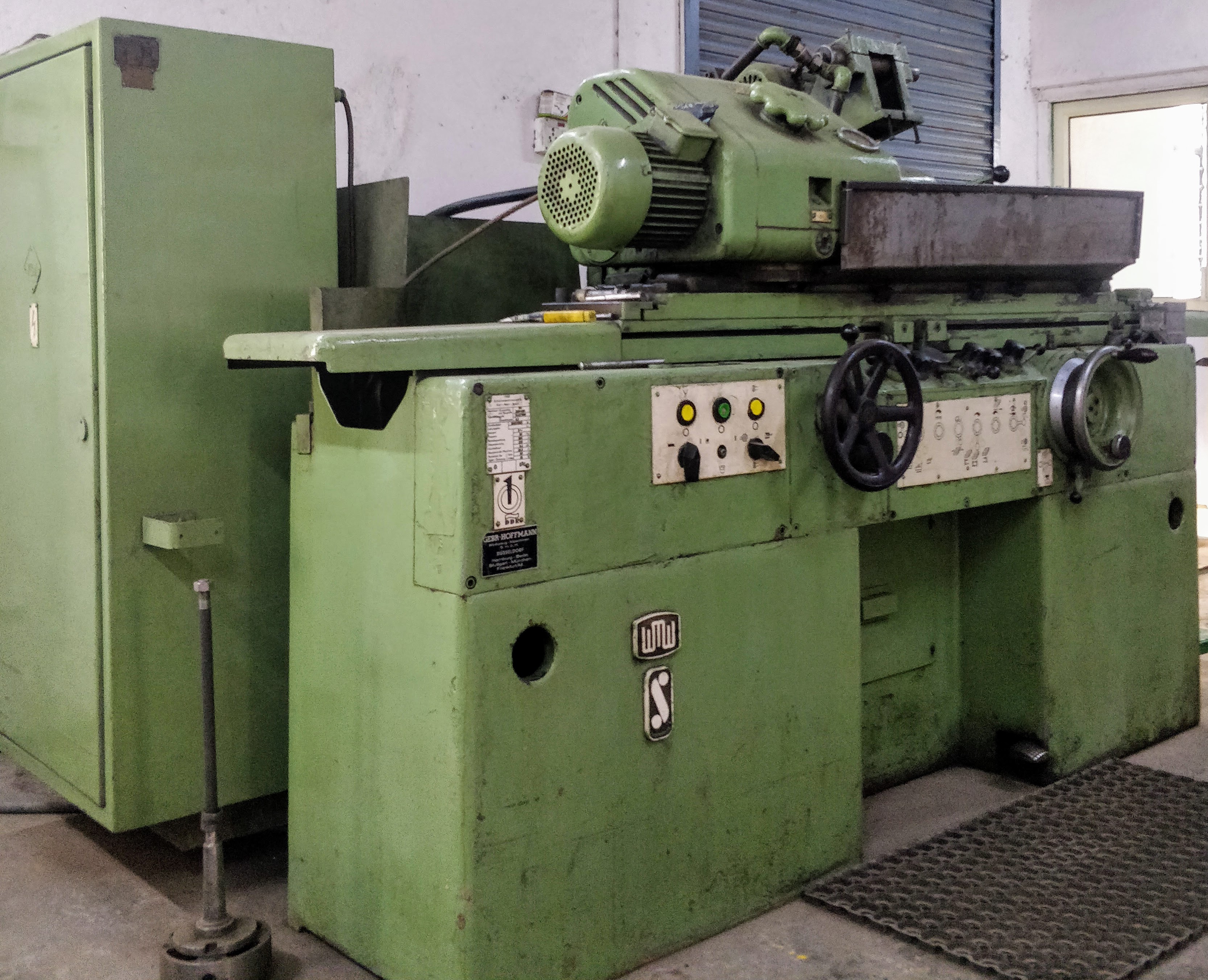

WMW cylindrical grinder
- Maximum job diameter
- 200 mm
- Job length
- 600 mm
Tool & cutter grinding

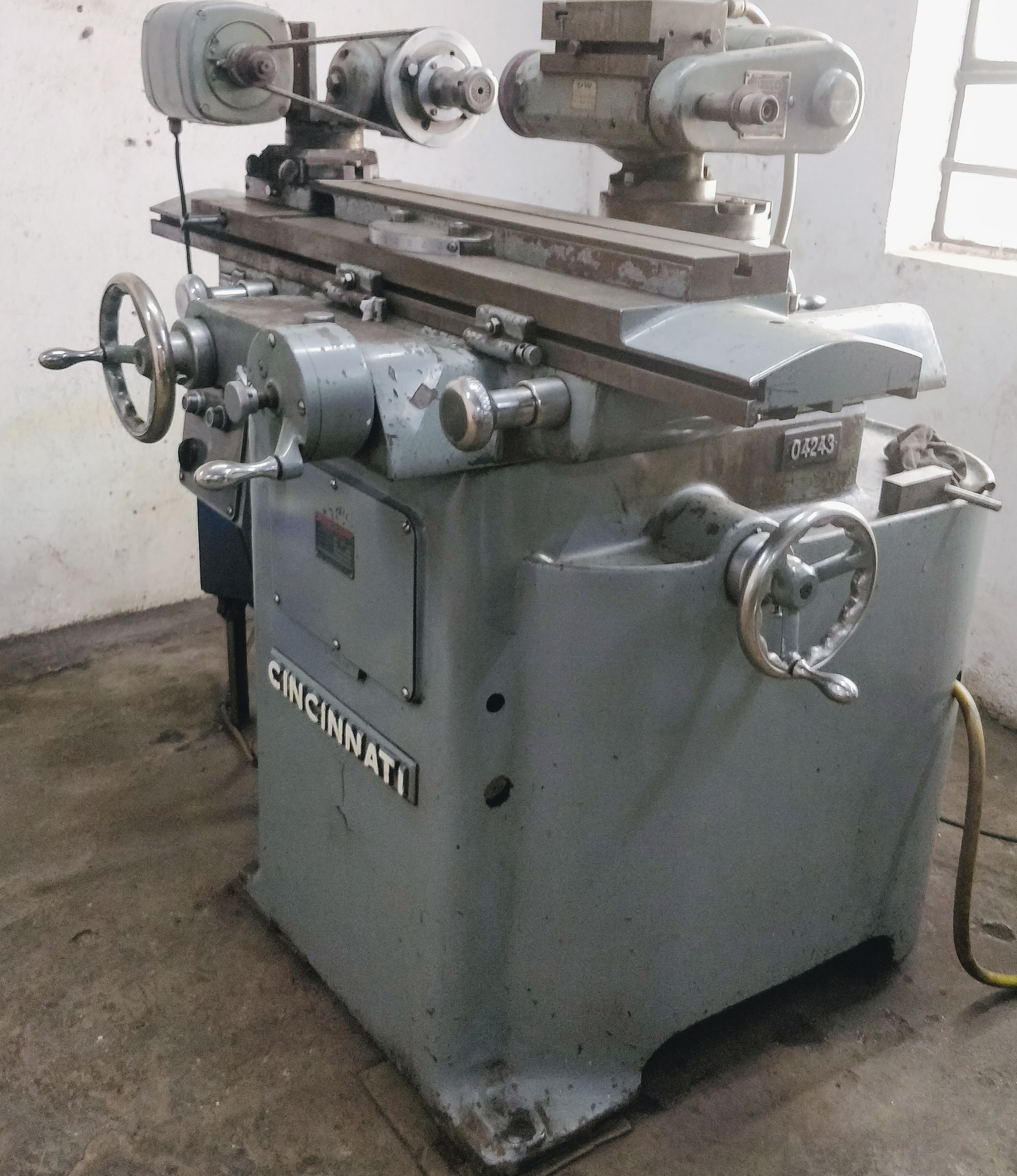

CINCINNATI tool & cutter grinder
- X / Y travel
- 400 / 200 mm
MANUFACTURING CAPABILITIES
Turning
Conventional turning

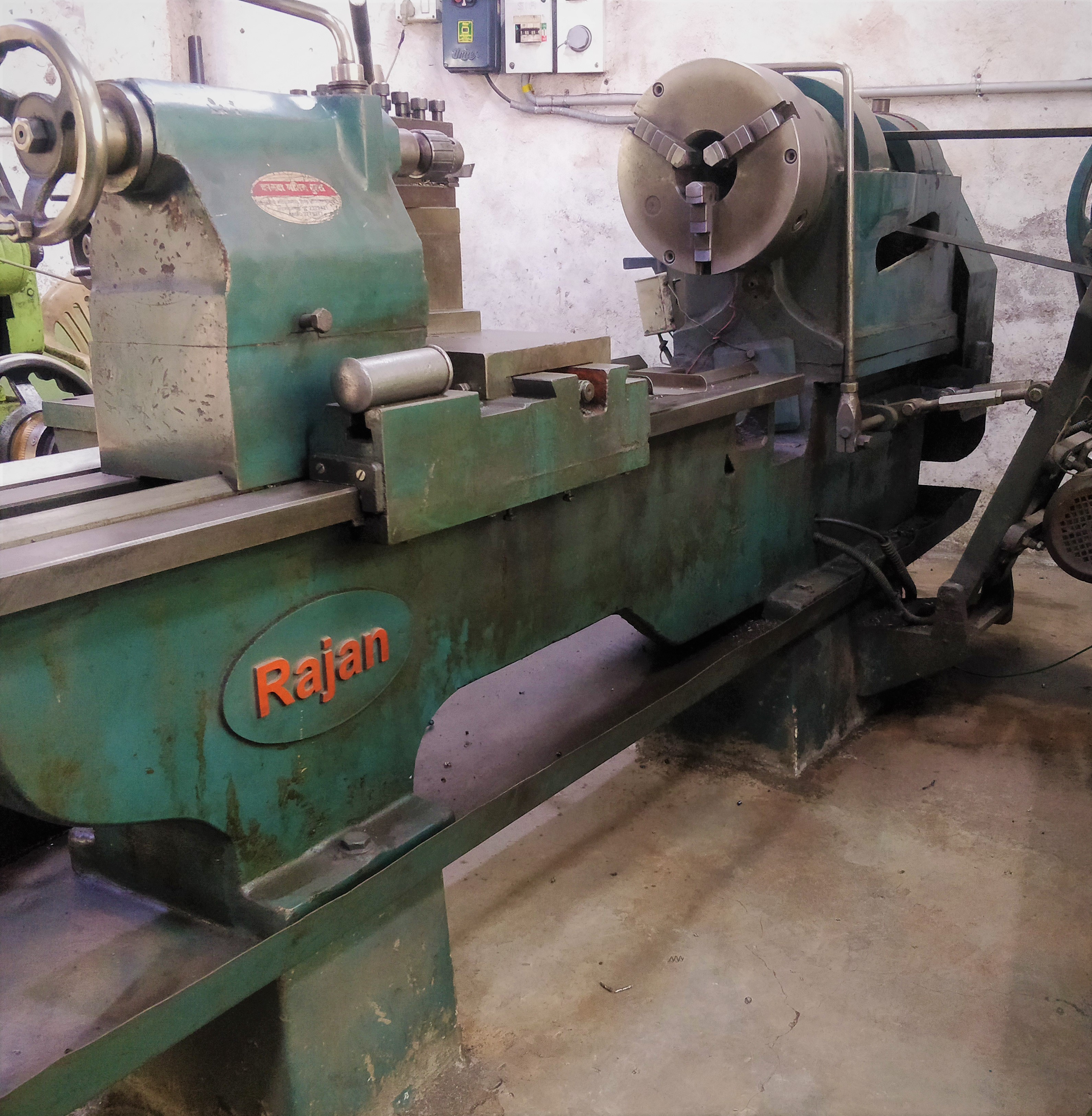

Lathe machines
- Quantity
- 3
- Maximum component diameter
- 600 mm
- Maximum component length
- 1000 mm
MANUFACTURING CAPABILITIES
Metal cutting
Metal cutting

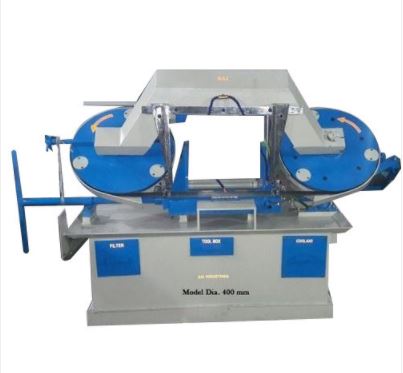

Bandsaw machine
Contact our team to discuss material and cutting requirements.
MANUFACTURING CAPABILITIES
Quality & inspection
Inspection

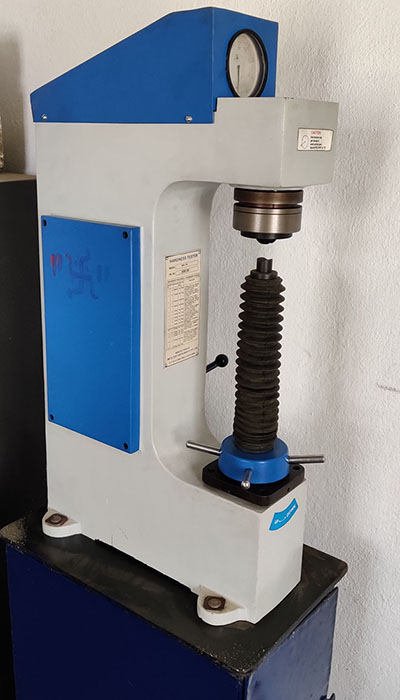

Hardness tester
Discuss the required inspection criteria with our team when sending your enquiry.
Inspection
Measuring instruments & surface plate
Discuss the required inspection criteria with our team when sending your enquiry.
Machine travel and load figures describe equipment capacity. Suitability for a particular component depends on its geometry, material, fixturing and required tolerances.
